FX Crown/Dreamline Single Shot Tray
FX Crown/Dreamline Single Shot Tray

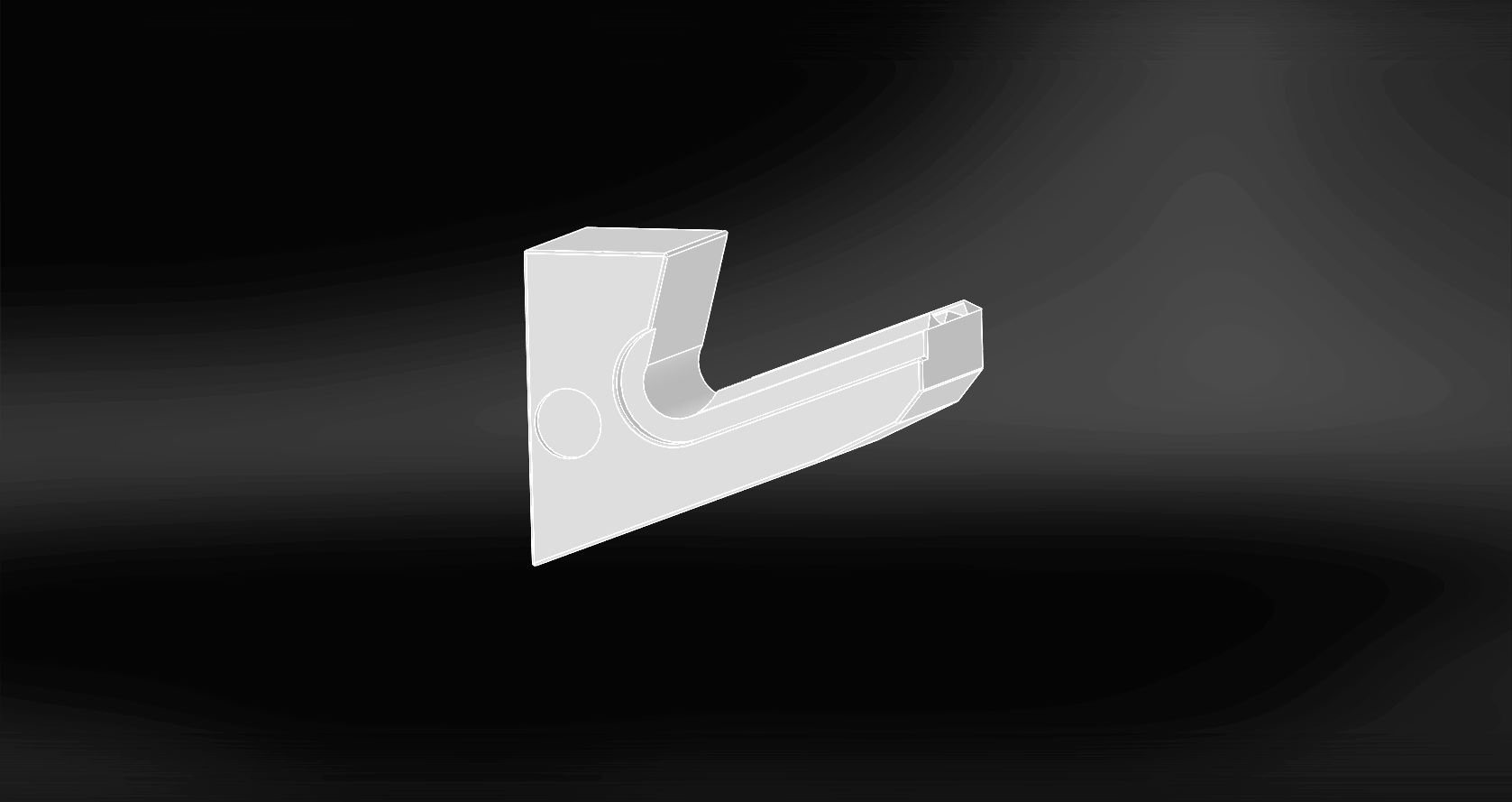

This is a tray to aid in the single-loading of pellets into your FX Crown or Dreamline, integrating seamlessly and allowing the use of lower scope mounts. Like the Crown/Dreamline magazine, it is retained by friction when the bolt is open, driven by a small O-ring on the face just like the OEM magazine. (in this case the opposite face than the OEM magazine)
Loading a pellet down and angled ramp, the traditional single shot tray, has always been fraught. Pellet skirts and heads typically differ in diameter, and certainly differ in mass, so have a certain inclination not to roll straight. So, in addition to traditional flat-ramp variants, we created tracked variants. These single shot trays are shaped to guide a specific pellet down the ramp with much greater consistency. Currently we have .22, .25, and .30 calibers available, with tracks specific to the JSB 18.13, JSB 25.39, JSB 44.75, and JSB 50.15. Your preferred pellet or slug not on that list? Send us a sample and we can make a tray just for your design.
The only part on this SST not printed is a small M1.5x3 O-ring (3mmID, 1.5mmWD). This provides for a convenient friction fit with the action. Technically, any small piece of rubber can substitute here.
Because this design may be updated or added to, we request that people do not re-host the design files themselves, but simply link back here where the design will ALWAYS be free to download. We also offer custom design and fabrication services, so if you wish to purchase this, or something like it, as a physical object please contact us.
