PARD 007S Scope Mounting Collet System
PARD 007S Scope Mounting Collet System

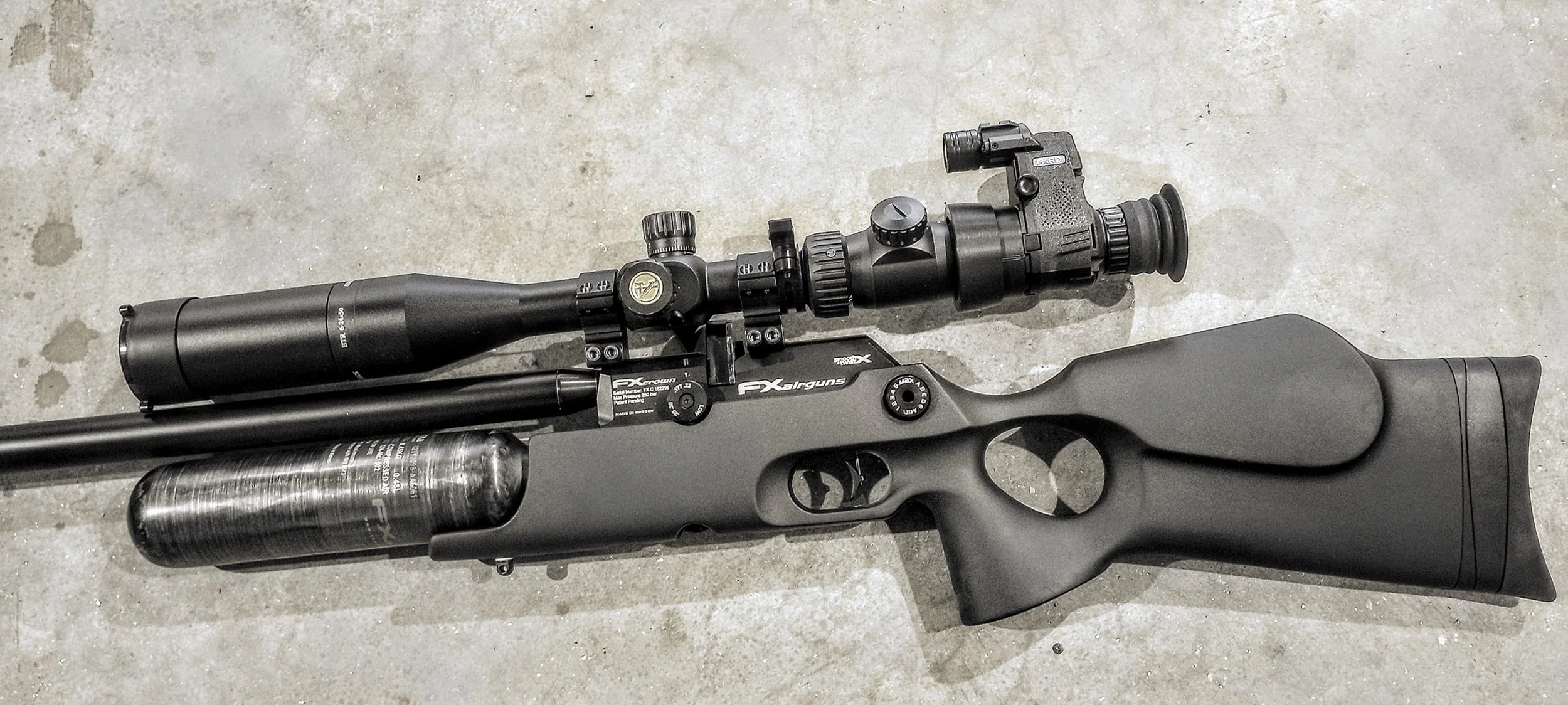

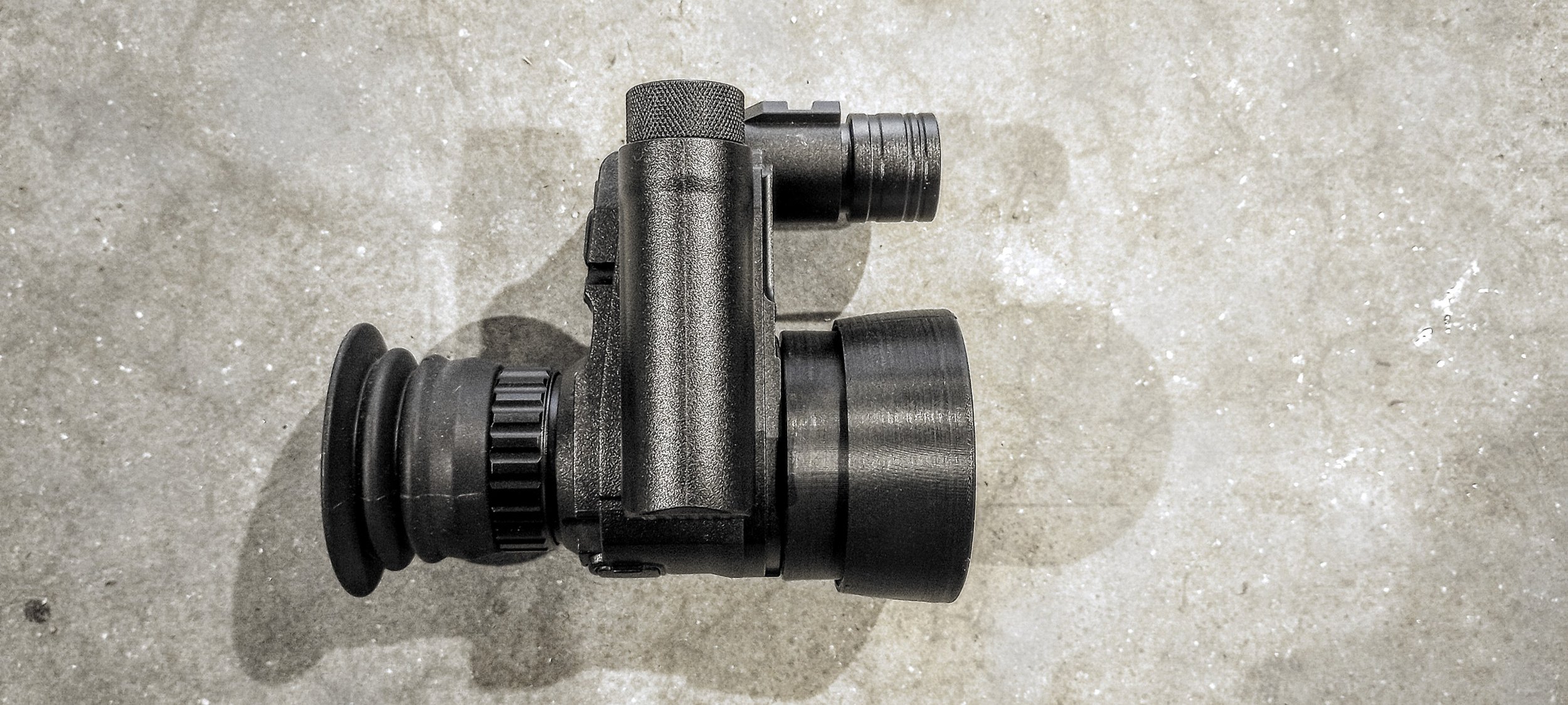

This printable unit mounts to the PARD 007S using the factory bayonet system. It is a seamless replacement for the original offset-screw-based scope clamping mechanism. No modification to any parts are required. The advantages of this system are:
Non-marring, no metal-on-metal to scratch your scope.
Mounts to larger diameter scope oculars.
Mounts to unusual oculars (have a scope with a domed focus adjust? A custom collet can fit it)
Greater mounting consistency; always holds the PARD centered on the ocular
Easy customization; custom collets are quite simple to design/fabricate with a maximum OD of 50mm and a taper angle of 18°.
Utilizes the same collet diameter and taper as some PARD and FireWolf optics.
Rapid mounting in the field, no tools required. (nothing to fumble, drop, or lose in the dark. Slide the complete unit over your ocular and twist to tighten.

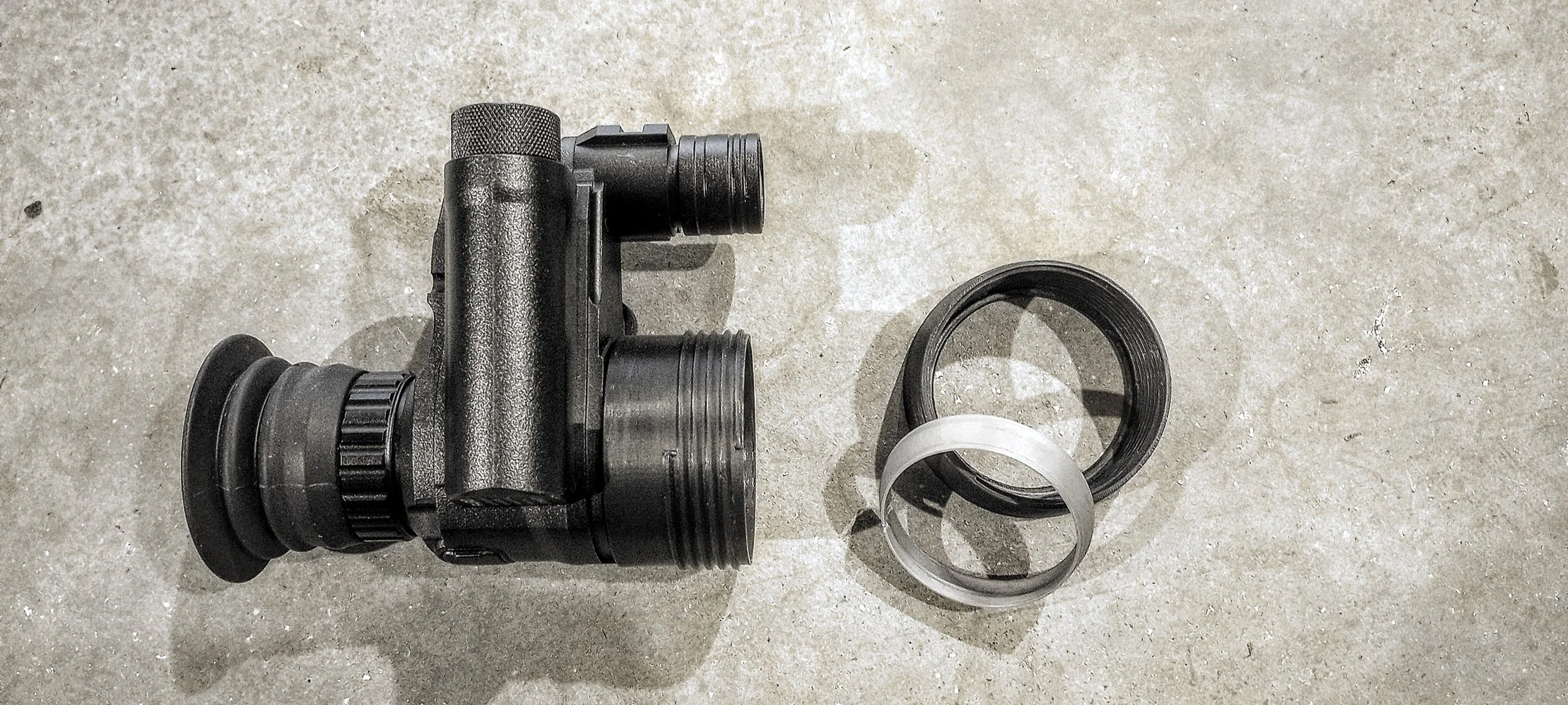

Includes a complete collet library which runs from 28 to 46mm. We also offer custom design/fabrication services, contact us if you need this printed for you or need a custom collet designed for unusually shaped scope oculars.
Because this design may be updated or added to, we request that people do not re-host the design files themselves, but simply link back here where the design will ALWAYS be free to download. We also offer custom design and fabrication services, so if you wish to purchase this, or something like it, as a physical object please contact us.
